Content Management System (CMS) Reference Architecture

The Content Management System (CMS) serves as a platform to facilitate content creation, organization, publishing, and user engagement. This reference architecture demonstrates the key entities and relationships inherent in a typical CMS.

Entities and Relationships

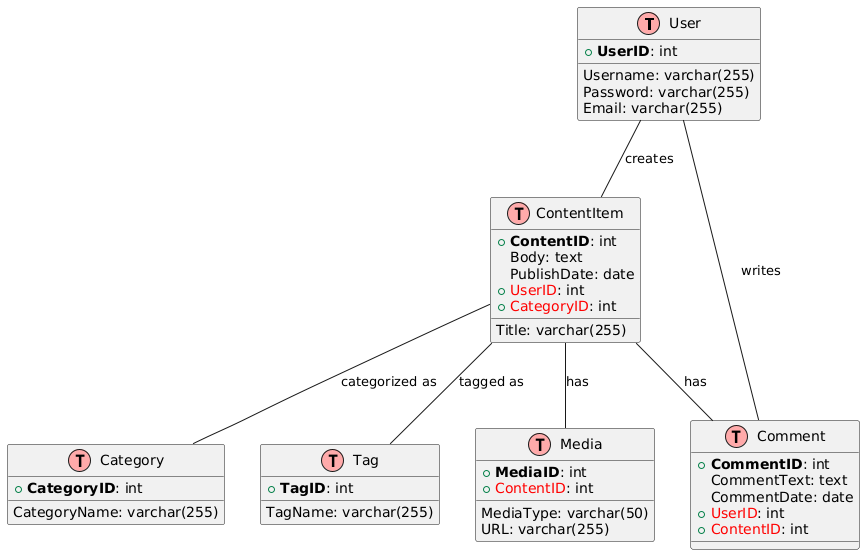

The primary entities in a CMS include User, Content Item, Category, Tag, Media, and Comment. Here’s a simplified ER diagram representing these entities and their relationships:

@startuml

!define table(x) class x << (T,#FFAAAA) >>
!define primary_key(x) <b>x</b>
!define foreign_key(x) <color:red>x</color>

table(User) {
  +primary_key(UserID): int
  Username: varchar(255)
  Password: varchar(255)
  Email: varchar(255)
}

table(ContentItem) {
  +primary_key(ContentID): int
  Title: varchar(255)
  Body: text
  PublishDate: date
  +foreign_key(UserID): int
  +foreign_key(CategoryID): int
}

table(Category) {
  +primary_key(CategoryID): int
  CategoryName: varchar(255)
}

table(Tag) {
  +primary_key(TagID): int
  TagName: varchar(255)
}

table(Media) {
  +primary_key(MediaID): int
  MediaType: varchar(50)
  URL: varchar(255)
  +foreign_key(ContentID): int
}

table(Comment) {
  +primary_key(CommentID): int
  CommentText: text
  CommentDate: date
  +foreign_key(UserID): int
  +foreign_key(ContentID): int
}

User -- ContentItem : creates
User -- Comment : writes
ContentItem -- Category : categorized as
ContentItem -- Media : has
ContentItem -- Comment : has
ContentItem -- Tag : tagged as

@enduml

Entity Descriptions

• User: Represents an individual user who can create content items and write comments.
• Content Item: Represents individual pieces of content, associated with a user, category, media, and comments.
• Category: Represents the category under which content items are organized.
• Tag: Represents keywords or tags associated with content items.
• Media: Represents media items associated with content items.
• Comment: Represents comments made by users on content items.

Relationship Descriptions

• A User can create multiple Content Items and write multiple Comments.
• A Content Item is created by a User, categorized under a Category, can have multiple Media items, and can have multiple Comments.
• A Category can have multiple Content Items.
• A Tag can be associated with multiple Content Items.
• A Media item is associated with a Content Item.
• A Comment is written by a User on a Content Item.

This simplified CMS model serves as a basis for understanding the relationships and interactions within a content management system. It can be further expanded or modified to meet the specific needs of different content-driven platforms.
