E-Commerce System Reference Architecture

The E-Commerce system is a quintessential online retail platform that facilitates the buying and selling of products. This reference architecture demonstrates key aspects such as inventory management, online transactions, user authentication, and digital marketing.

Entities and Relationships

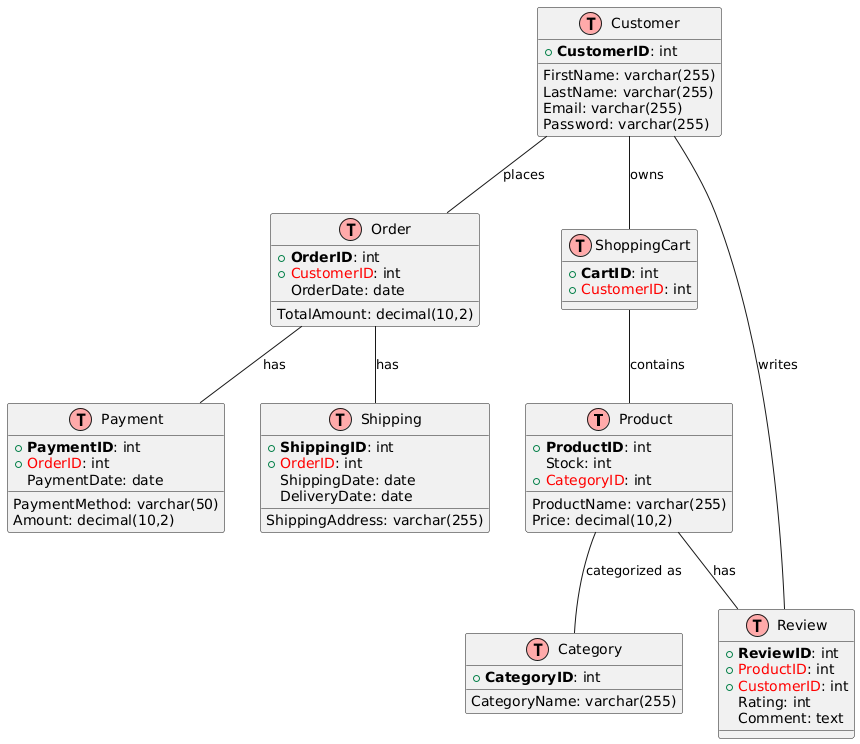

The primary entities in this system include Product, Customer, Order, Shopping Cart, Payment, Shipping, Category, and Review. Here’s a simplified ER diagram representing these entities and their relationships:

@startuml

!define table(x) class x << (T,#FFAAAA) >>
!define primary_key(x) <b>x</b>
!define foreign_key(x) <color:red>x</color>

table(Product) {
  +primary_key(ProductID): int
  ProductName: varchar(255)
  Price: decimal(10,2)
  Stock: int
  +foreign_key(CategoryID): int
}

table(Customer) {
  +primary_key(CustomerID): int
  FirstName: varchar(255)
  LastName: varchar(255)
  Email: varchar(255)
  Password: varchar(255)
}

table(Order) {
  +primary_key(OrderID): int
  +foreign_key(CustomerID): int
  OrderDate: date
  TotalAmount: decimal(10,2)
}

table(ShoppingCart) {
  +primary_key(CartID): int
  +foreign_key(CustomerID): int
}

table(Payment) {
  +primary_key(PaymentID): int
  +foreign_key(OrderID): int
  PaymentMethod: varchar(50)
  PaymentDate: date
  Amount: decimal(10,2)
}

table(Shipping) {
  +primary_key(ShippingID): int
  +foreign_key(OrderID): int
  ShippingAddress: varchar(255)
  ShippingDate: date
  DeliveryDate: date
}

table(Category) {
  +primary_key(CategoryID): int
  CategoryName: varchar(255)
}

table(Review) {
  +primary_key(ReviewID): int
  +foreign_key(ProductID): int
  +foreign_key(CustomerID): int
  Rating: int
  Comment: text
}

Product -- Category : categorized as
Product -- Review : has
Customer -- ShoppingCart : owns
Customer -- Order : places
Customer -- Review : writes
Order -- Payment : has
Order -- Shipping : has
ShoppingCart -- Product : contains

@enduml

Entity Descriptions

• Product: Represents the items available for purchase, associated with categories and reviews.
• Customer: Represents the users of the platform with their essential information.
• Order: Captures the details of customer orders. Shopping Cart: Holds products that a customer intends to purchase.
• Payment: Records payment transactions for orders.
• Shipping: Manages shipping information for orders.
• Category: Classifies products into various categories.
• Review: Holds customer reviews for products.

Relationship Descriptions

• A Product is categorized under a Category and can have multiple Reviews.
• A Customer can own a Shopping Cart, place multiple Orders, and write multiple Reviews.
• An Order is associated with a Payment and Shipping detail.
• A Shopping Cart can contain multiple Products.

This simplified E-Commerce model serves as a basis for understanding the relationships and interactions within an online retail system. It can be further expanded or modified to meet the specific needs of different E-Commerce platforms.
